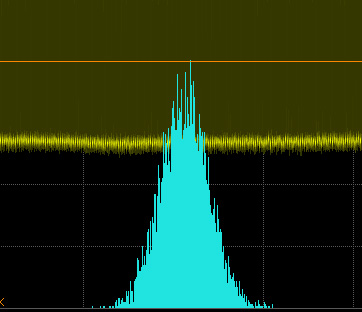

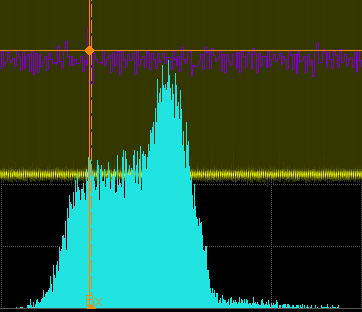

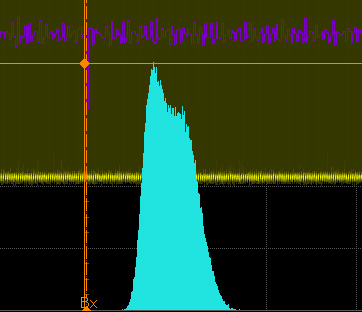

Several variables contribute to the quality of audio digitization. Ideally, the preamps, A/D converters, and clock can each be tested independently. Below are histograms and measurements illustrating differences in clock jitter distribution between a MOTU Traveler, RME FireFace 800, and Apogee AD-16x. Clocks were measured on Agilent test equipment using the word clock out BNC connectors. Each device was set to 96 khz sample rate. These measurements only tell part of the story about the differences in the units' resultant audio, but are provided for others who are evaluating their signal chains.
MOTU Traveler Mean: 96.006734 kHz Min: 95.972800 kHz Max: 96.028972 kHz Range: 56.1716492 Hz Std Deviation: 4.95723840 Hz Num Measurements: 45.682 k RME FireFace 800 Mean: 96.000117 kHz Min: 95.973239 kHz Max: 96.008292 kHz Range: 35.0523463 Hz Std Deviation: 2.44256624 Hz Num Measurements: 190.76 k Apogee AD-16x Mean: 95.999820 kHz Min: 95.973095 kHz Max: 96.005625 kHz Range: 32.5304321 Hz Std Deviation: 1.71723868 Hz Num Measurements: 64.758 k
|
||
